removed all bit index operations, changed bit index instruction parameter to 8-bit vector number, to have max 256x vector instructions duplicates running in array mode at once, default 8x vector instructions at once.

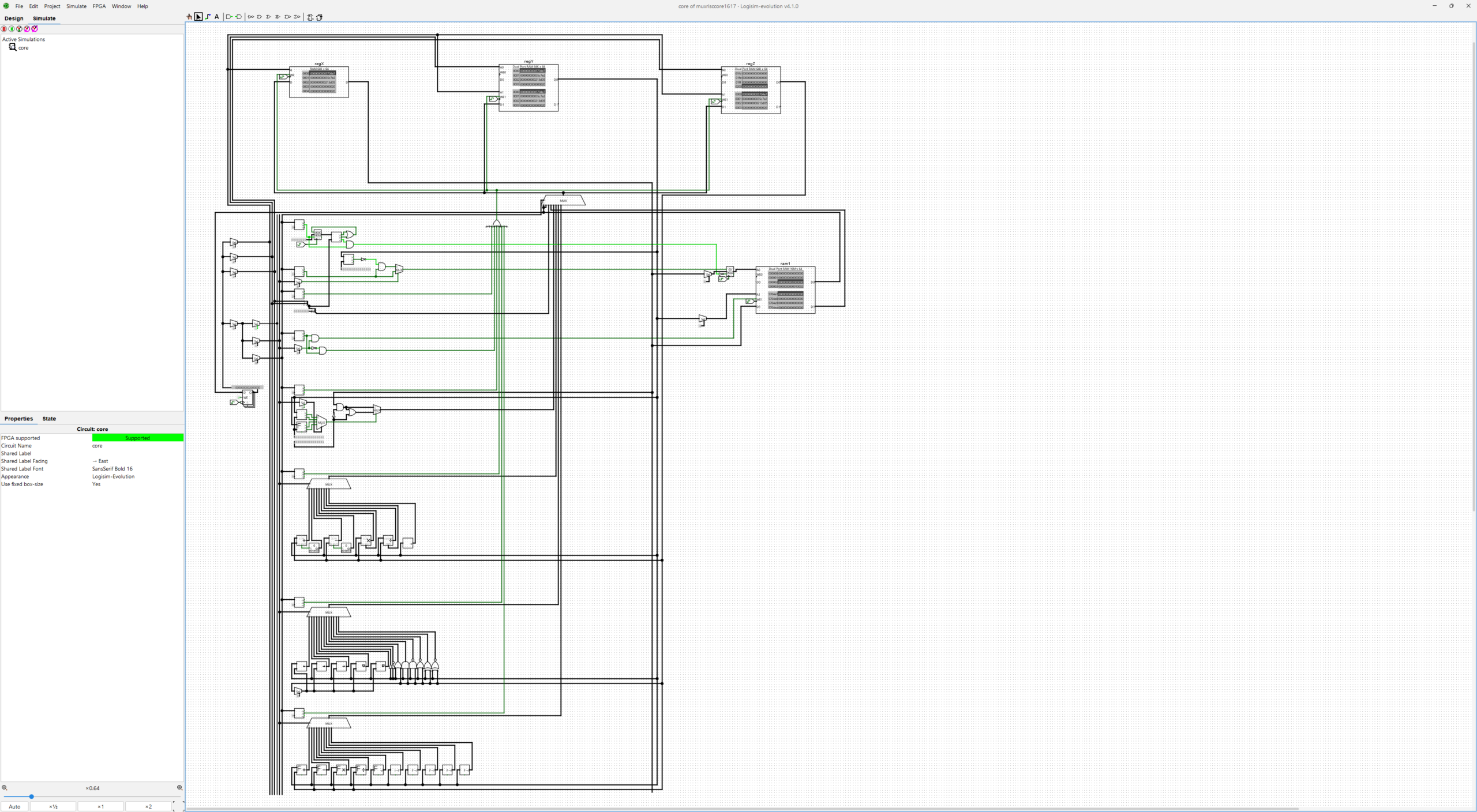

changed ram to dual port ram. every instruction is now 1 cycle, including ram load/store. simplified circuit in general. rearranged regX, regY and regZ dual port ram single-line modules to test octo-line array input/output mode. simplified mux risc core to single circuit running only single core with direct ram loading and full 64k x 64bit registry and 128MB unified ram.
RISC core-gate instruction set architecture (64-bit variation of RISC-V):
MISC compute chip contains 64k cores, total of 32GB register nvsram and 8TB memory nvsram.
Each core contains 64k local 64-bit ram registers. load/store instructions can address global memory.
Each core contains 24-bit addressed 128MB ram, including rom, ram, touch-display ram, and nand nvram.
Every instruction uses/operates on full 64-bit register values always, and runs in 1 cycle.
Instruction high bits can contain specific simple variations of instructions, and vector duplicates.
Each 64-bit instruction is formed from 16-bit [regX regY regZ insT] parameters.
insT parameter is formed from 8-4-4-bit [vecN insV insO] parameters.
Estimated logic transistors per core is 200k making 64k cores about 12.8 billion.
Estimated ram transistors per core is 8million 512KB and 256billion total 32GB.
Estimated compute 64-bit teraops at 5GHz x 8-vector per core is 40gops and 2560tops total.
Opcode | Instruction | Name | Description
----------------------------------------------------------------------------------------------------
any | ## | Any Raw Data | direct data line 64-bit value
0 | nopYZ | No Operation | no operation sleep constant regYZ cycles
[] empty line or white space line
// comment line
1 | jmpXY | Jump Destination | jump to regX if regY is not zero
jmpcXY insV=0 jump to regX if regY is not zero
jmpuXY insV=1 unconditional jump to regX
2 | ldiXYZ | Load 32-bit Uint | load regX with constant regYZ
3 | memXY | Memory Double | store/load[insV] regX at memory[regY]
memrXY insV=0 load
memwXY insV=1 store
4 | cmpXY | Compare to Zero | clear regX to 0, set to 1 if regY comp[insV]
cmpeXY insV=0 integer equal to
cmplXY insV=1 integer less than
cmpefXY insV=2 float equal to
cmplfXY insV=3 float less than
5 | intXYZ | ALU Int Operation | store integer op[insV] regY regZ to regX
addXYZ insV=0 integer add
addoXYZ insV=1 integer add overflow bit
subXYZ insV=2 integer subtract
subbXYZ insV=3 integer subtract borrow bit
mulXYZ insV=4 integer multiply
muloXYZ insV=5 integer multiply overflow
divXYZ insV=6 integer divide
divrXYZ insV=7 integer divide remainder
negXYZ insV=8 integer negate
6 | bitXYZ | ALU Bit Operation | store bitwise op[insV] regY regZ to regX
shlXYZ insV=0 bitwise shift left regZ bits
shrXYZ insV=1 bitwise shift right regZ bits
sharXYZ insV=2 bitwise shift arithmetic right regZ bits
rotlXYZ insV=3 bitwise rotate left regZ bits
rotrXYZ insV=4 bitwise rotate right regZ bits
copyXYZ insV=5 bitwise copy
notXYZ insV=6 bitwise not
orXYZ insV=7 bitwise or
andXYZ insV=8 bitwise and
nandXYZ insV=9 bitwise nand
norXYZ insV=A bitwise nor
xorXYZ insV=B bitwise xor
xnorXYZ insV=C bitwise xnor
7 | flpXYZ | ALU Flp Operation | store float op[insV] regY regZ to regX
addfXYZ insV=0 float add
subfXYZ insV=1 float subtract
mulfXYZ insV=2 float multiply
divfXYZ insV=3 float divide
negfXYZ insV=4 float negate
itfXYZ insV=5 integer to float
ftinXYZ insV=6 float to integer nearest
ftidXYZ insV=7 float to integer round down
ftiuXYZ insV=8 float to integer round up
ftitXYZ insV=9 float to integer truncateExample looping test assembly code source and binary:
source listing | binary | explanation
----------------------------------------------------------------------------------------------------
[] | 0000000000000000 | empty line
// empty line | 0000000000000000 | comment line
nop 00000200 | 0000000002000000 | no operation sleep 512+1 cycles
ldi 0000 00000001 | 0000000000010002 | load register 0 with value 0x1, current fibonacci number
ldi 0001 00000001 | 0001000000010002 | load register 1 with value 0x1, previous fibonacci number
ldi 0002 00000000 | 0002000000000002 | load register 2 with value 0x0, previous+ fibonacci number
ldi 0003 00000000 | 0003000000000002 | load register 3 with value 0x0, for loop index from 0
ldi 0004 00000020 | 0004000000200002 | load register 4 with value 0x20, for loop less than 32
ldi 0005 00000018 | 0005000000180002 | load register 5 with value 0x18, ram store start index
ldi 0006 00000001 | 0006000000010002 | load register 6 with value 0x1, constant 0x1 add and jump
ldi 0007 0000000C | 00070000000C0002 | load register 7 with value 0xC constant jump address
ldi 000b 00000000 | 000b000000000002 | load register 11 with value 0x0 constant jump address
copy 0002 0001 | 0002000100000056 | copy register 1 to register 2
copy 0001 0000 | 0001000000000056 | copy register 0 to register 1
add 0000 0001 0002 | 0000000100020005 | store addition of register 1 and register 2 to register 0
add 000a 0005 0003 | 000a000500030005 | store addition of register 5 and register 3 to register 10
memw 0000 000a | 0000000a00000013 | store register 0 to register 10 memory location
add 0003 0003 0006 | 0003000300060005 | store addition of register 3 and register 6 to register 3
sub 0008 0003 0004 | 0008000300040025 | store subtract of register 3 and register 4 to register 8
cmpl 0009 0008 | 0009000800000014 | clear register 9 to 0, set if register 8 int less than 0
jmpc 0007 0009 | 0007000900000001 | jump to register 7 if register 9 is not zero
jmpu 000b | 000b000000000011 | unconditional jump to register 11
## A123456789ABCDEF | a123456789abcdef | custom data segment with any instruction or dataExample looping test assembly to c-code approximate:
while(true) { // infinite while loop
register<0> long fib1 = 0x1; // init fib1 with register 0 64-bit long integer value 1
register<1> long fib2 = 0x1; // init fib2 with register 1 64-bit long integer value 1
register<2> long fib3 = 0x0; // init fib3 with register 2 64-bit long integer value 0
register<3> long i = 0; // init loop i with register 3 64-bit long integer value 0
register<4> long imax = 32; // init loop imax with register 4 64-bit long integer value 32
register<5> long *mem = 0x18; // init mem as 64-bit long integer pointer at address 0x18
for (;i<imax;i++) { // for loop 64-bit long integer i index value from 0 to 31
fib3 = fib2; // copy old fib2 value to fib3
fib2 = fib1; // copy old fib1 value to fib2
fib1 = fib2 + fib3; // calculate new fib1 value by adding fib2 and fib3
mem[i] = fib1; // store fib1 value to mem location +i index
} // for loop close
} // infinite while loop closegate pipeline compute implemented as risc-v compute cores grid routing network. each core has their own 16-bit x 64bit = 512KB internal compute cache, but all middle level memory based caches are replaced with grid routing network for much higher bandwidth. each gate core has 2x 64-bit wide input and 1x 64-bit wide output.
gate pipeline compute architecture based on pre-computed nor-memory stored 8-bit values fpga architecture.
Logic gate pipeline compute.
Logic circuit/gate assembler.
