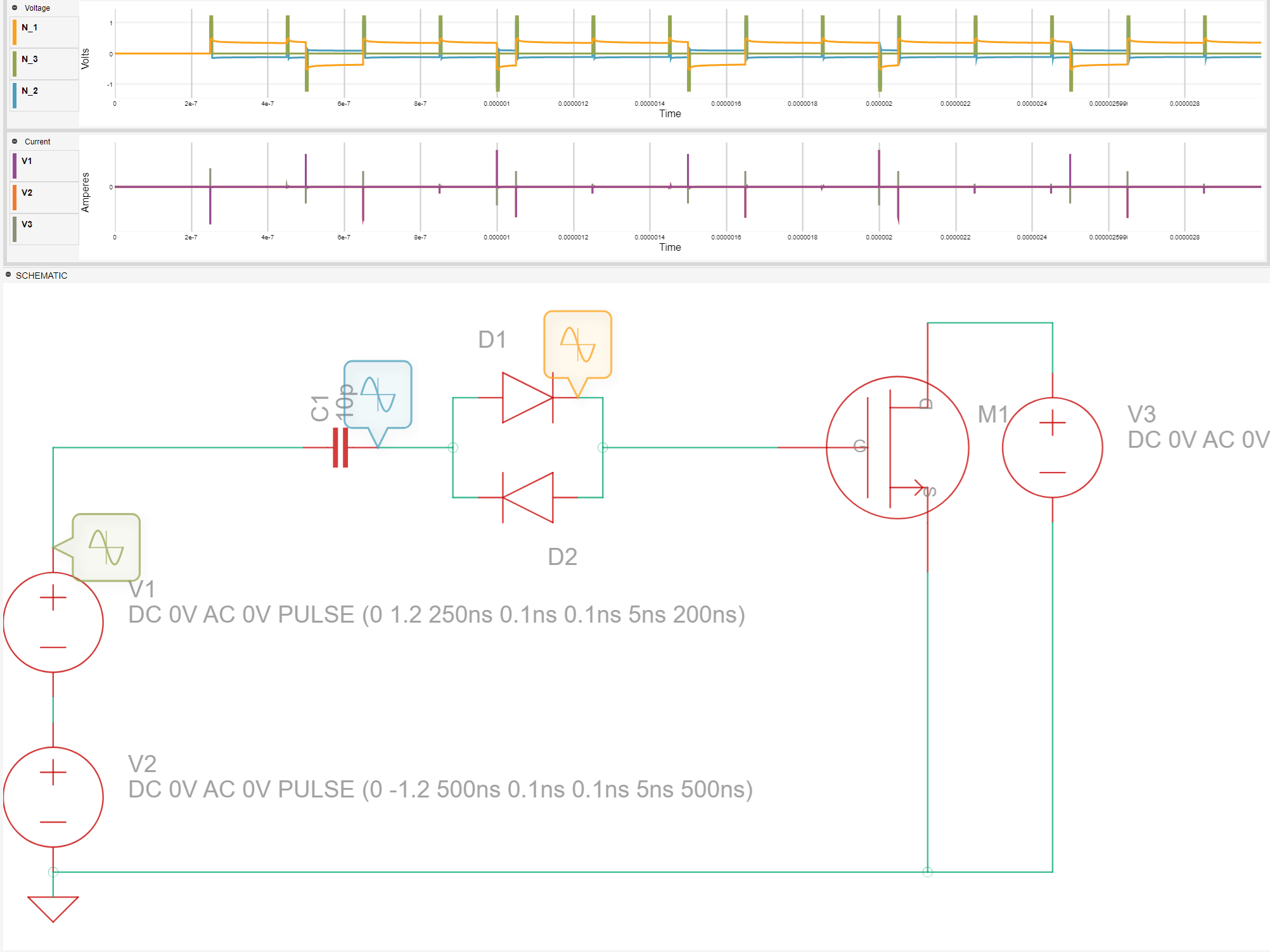

Small signal NVSRAM latch bit storage using narrow pulses.

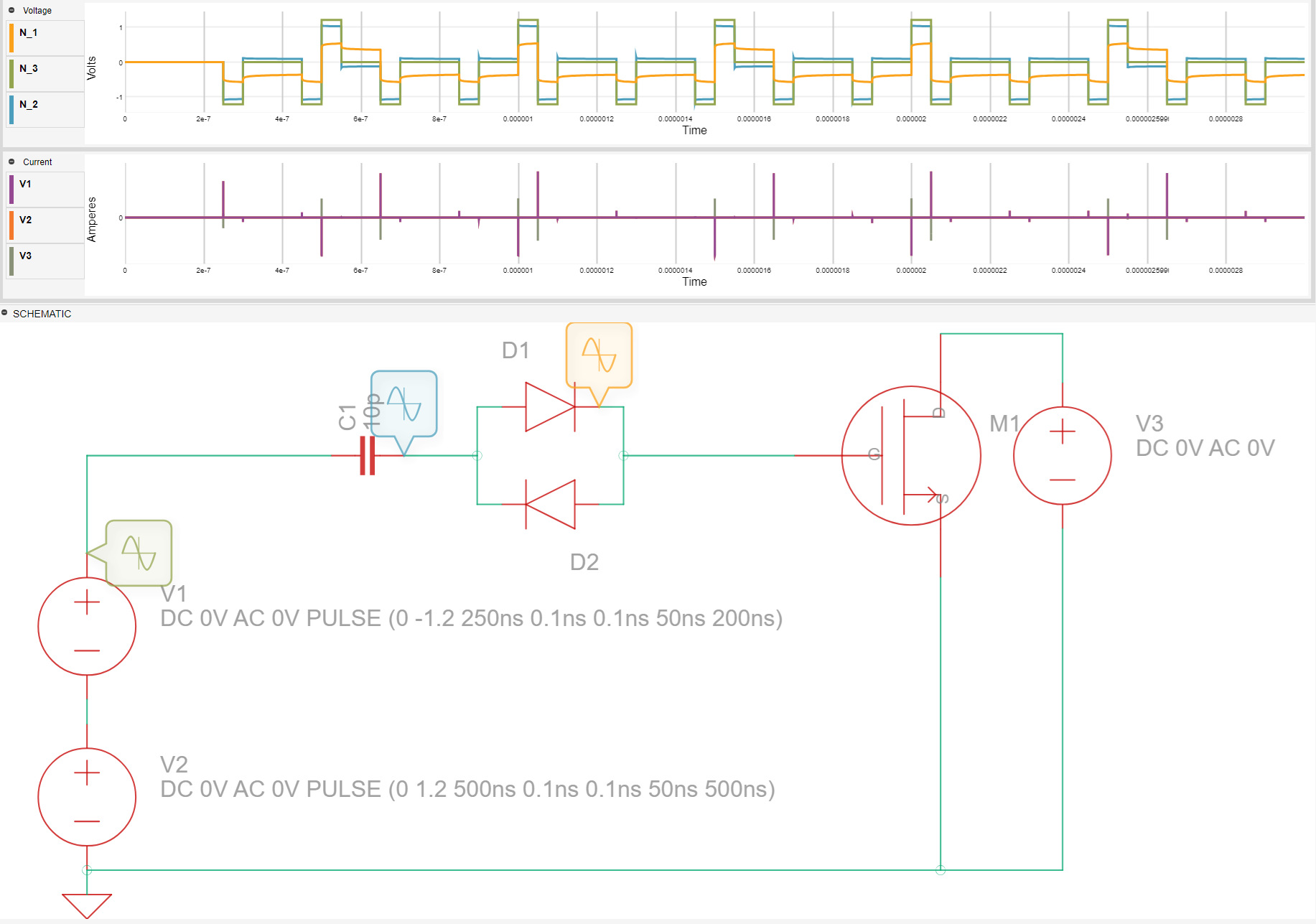

Small signal NVSRAM latch bit storage with input voltage changed to 0±1.2v. If the input bit change voltage is too high then diode hysteresis circuit stops working.
Converting small signal amplifier mosfet into nvsram memory bit using parallel opposite diodes hysteresis. pull-down chain instead of pass-through chain for mosfet word select lines might be better for small signal diode hysteresis nvsram with a single coupling capacitor.
