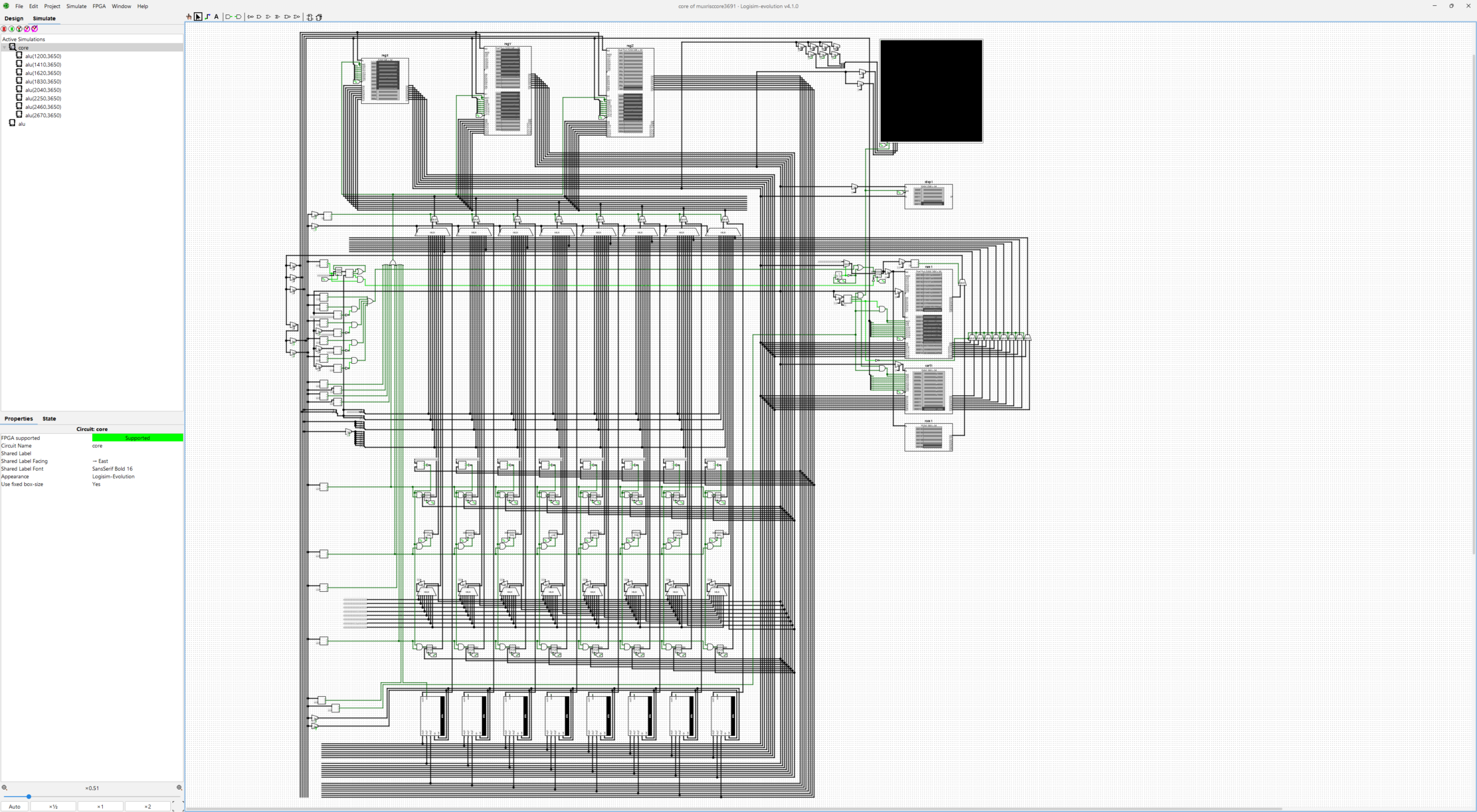

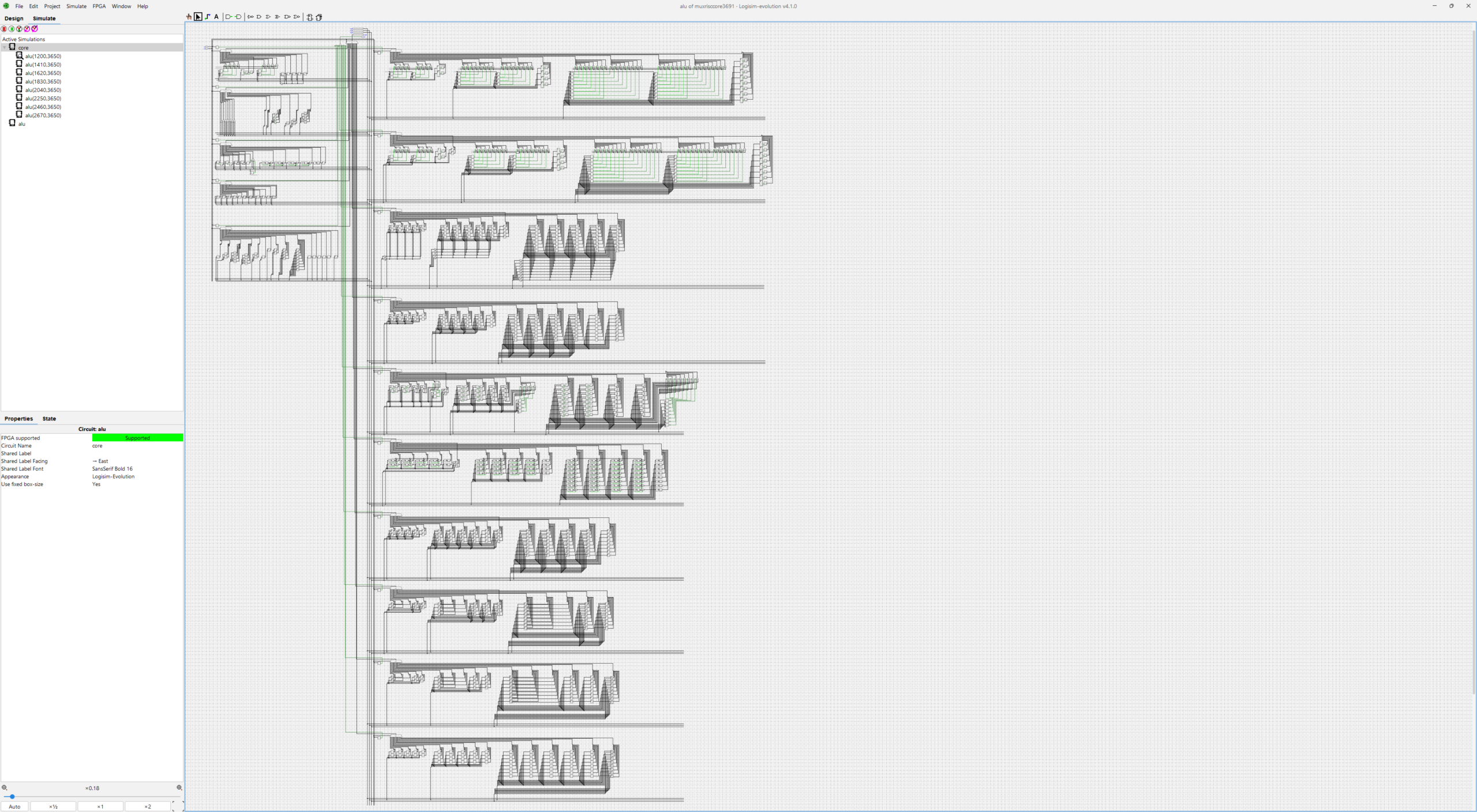

MISC compute chip contains 64k cores, total of 32GB register nvsram and 8TB memory nvsram. Each core contains 64k local 64-bit ram registers, and mapped rom, ram, touch-display ram. Every instruction uses/operates on full 64-bit register values always, and runs in 1 cycle. Every integer instruction uses two’s complement signed long integer operations. Instruction high bits can contain specific simple variations of instructions, and vector duplicates. Each 64-bit instruction is formed from 16-bit [regX regY regZ insT] parameters. insT parameter is formed from 8-4-4-bit [vecN insV insO] parameters. Estimated logic transistors per core is 1million making 64k cores about 64 billion. Estimated ram transistors per core is 8million 512KB and 512billion total 32GB. Estimated compute 64-bit teraops at 5GHz x 8-vector per core is 40gops and 2560tops total.
RISC core-gate instruction set architecture (64-bit variation of RISC-V):
Op | Instruction (-, 32, 16, 8) | Description (1x64b, 2x32b, 4x16b, 8x8b)
----------------------------------------------------------------------------------------------------
any | Raw Data | any raw data
## direct data line 64-bit value
0 | Flow Control | generic flow control
nop [] // insV=0 no operation sleep constant regYZ cycles, comment
jmp insV=1 unconditional jump to regX
jmpc, jmpc32, jmpc16, jmpc8 insV=2-5 jump to regX if regY 64/32/16/8-bit is not zero
ldi, ldi32, ldi16, ldi8 insV=6-9 load regX 1x32/2x32/4x16/8x8-bit constant regYZ
clk, rnd, core, time insV=A-D integer counter, random, core info, global time
memr, memw insV=E-F load/store regX from/to shared memory[regY]
1 | ALU Compare Zero | set 1 if comp regY to zero
cmpez, cmpez32, cmpez16, cmpez8 insV=0-3 integer equal to zero
cmplz, cmplz32, cmplz16, cmplz8 insV=4-7 integer less than zero
fcmpez, fcmpez32, fcmpez16, fcmpez8 insV=8-B float equal to zero
fcmplz, fcmplz32, fcmplz16, fcmplz8 insV=C-F float less than zero
2 | ALU Compare Value | set 1 if comp regY to regZ
cmpe, cmpe32, cmpe16, cmpe8 insV=0-3 integer equal to regZ
cmpl, cmpl32, cmpl16, cmpl8 insV=4-7 integer less than regZ
fcmpe, fcmpe32, fcmpe16, fcmpe8 insV=8-B float equal to regZ
fcmpl, fcmpl32, fcmpl16, fcmpl8 insV=C-F float less than regZ
3 | ALU Compare Special | set 1 if comp regY regZ
neg, neg32, neg16, neg8 insV=0-3 integer negate
copyc, copyc32, copyc16, copyc8 insV=4-7 conditional copy
finf, finf32, finf16, finf8 insV=8-B float is infinity
fnan, fnan32, fnan16, fnan8 insV=C-F float is not-a-number
4 | ALU Bitwise | bitwise regY regZ to regX
copy, not, or, and insV=0-3 bitwise copy/not/or/and
nand, nor, xor, xnor insV=4-7 bitwise nand/nor/xor/xnor
shl, shl32, shl16, shl8 insV=8-B bitwise shift left
shr, shr32, shr16, shr8 insV=C-F bitwise shift right
5 | ALU Bitwise | bitwise regY regZ to regX
shar, shar32, shar16, shar8 insV=0-3 bitwise arithmetic shift right
rotl, rotl32, rotl16, rotl8 insV=4-7 bitwise rotate left
rotr, rotr32, rotr16, rotr8 insV=8-B bitwise rotate right
ones, ones32, ones16, ones8 insV=C-F bitwise count of one bits
6 | ALU Bitwise | bitwise regY to regX
lone, lone32, lone16, lone8 insV=0-3 bitwise lowest one bit or -1
hone, hone32, hone16, hone8 insV=4-7 bitwise highest one bit or -1
lzero, lzero32, lzero16, lzero8 insV=8-B bitwise lowest zero bit or -1
hzero, hzero32, hzero16, hzero8 insV=C-F bitwise highest zero bit or -1
7 | ALU Integer | integer regY regZ to regX
add, add32, add16, add8 insV=0-3 integer add
sub, sub32, sub16, sub8 insV=4-7 integer subtract
mul, mul32, mul16, mul8 insV=8-B integer multiply
div, div32, div16, div8 insV=C-F integer divide
8 | ALU Integer | integer regY regZ to regX
addo, addo32, addo16, addo8 insV=0-3 integer add overflow
subb, subb32, subb16, subb8 insV=4-7 integer subtract borrow
mulo, mulo32, mulo16, mulo8 insV=8-B integer multiply overflow
divr, divr32, divr16, divr8 insV=C-F integer divide remainder
9 | ALU Float | float regY regZ to regX
fadd, fadd32, fadd16, fadd8 insV=0-3 float add
fsub, fsub32, fsub16, fsub8 insV=4-7 float subtract
fmul, fmul32, fmul16, fmul8 insV=8-B float multiply
fdiv, fdiv32, fdiv16, fdiv8 insV=C-F float divide
A | ALU Float | float regY regZ to regX
fneg, fneg32, fneg16, fneg8 insV=0-3 float negate
flog, flog32, flog16, flog8 insV=4-7 float logarithm
fpow, fpow32, fpow16, fpow8 insV=8-B float power
fsqrt, fsqrt32, fsqrt16, fsqrt8 insV=C-F float square root
B | ALU Float | float regY regZ to regX
fsin, fsin32, fsin16, fsin8 insV=0-3 float sine
ftan, ftan32, ftan16, ftan8 insV=4-7 float tangent
fcos, fcos32, fcos16, fcos8 insV=8-B float cosine
fmin, fmin32, fmin16, fmin8 insV=C-F float min
C | ALU Float | float regY regZ to regX
fasin, fasin32, fasin16, fasin8 insV=0-3 float arcsine
fatan, fatan32, fatan16, fatan8 insV=4-7 float arctangent
facos, facos32, facos16, facos8 insV=8-B float arccosine
fmax, fmax32, fmax16, fmax8 insV=C-F float max
D | ALU Float | float regY to regX
fln, fln32, fln16, fln8 insV=0-3 float natural log
fexp, fexp32, fexp16, fexp8 insV=4-7 float exponential
fabs, fabs32, fabs16, fabs8 insV=8-B float abs
ffact, ffact32, ffact16, ffact8 insV=C-F float factorial
E | ALU Conversion | conversion regY to regX
ftin, ftin32, ftin16, ftin8 insV=0-3 float to int nearest
ftid, ftid32, ftid16, ftid8 insV=4-7 float to int down
ftiu, ftiu32, ftiu16, ftiu8 insV=8-B float to int up
ftit, ftit32, ftit16, ftit8 insV=C-F float to int truncate
F | ALU Conversion | conversion regY to regX
ii32, i32i16, i16i8 insV=0-2 integer 1x64b->2x32b, 2x32b->4x16b, 4x16b->8x8b
i32i, i16i32, i8i16 insV=3-5 integer 1x32b->1x64b, 2x16b->2x32b, 4x8b->4x16b
ff32, f32f16, f16f8 insV=6-8 float 1x64b->2x32b, 2x32b->4x16b, 4x16b->8x8b
f32f, f16f32, f8f16 insV=9-B float 1x32b->1x64b, 2x16b->2x32b, 4x8b->4x16b
fitf, fitf32, fitf16, fitf8 insV=C-F integer to floatExample looping test assembly code source and binary:
source listing | binary | explanation
----------------------------------------------------------------------------------------------------
[] | 0000000000000000 | empty line
// empty line | 0000000000000000 | comment line
nop 00000200 | 0000000002000000 | no operation sleep 512+1 cycles
ldi 0000 00000001 ff | 000000000001ff02 | load registers 0-7 with 0x1, current fibonacci num
ldi 0008 00000001 ff | 000800000001ff02 | load registers 8-15 with 0x1, previous fibonacci num
ldi 0010 00000000 ff | 001000000000ff02 | load registers 16-23 with 0x0, previous+ fibonacci num
ldi 0018 00000000 | 0018000000000002 | load register 24 with value 0x0, for loop index from 0
ldi 0019 00000020 | 0019000000200002 | load register 25 with value 0x20, for loop less than 32
ldi 001a 00000018 | 001a000000180002 | load register 26 with value 0x18, ram store start index
ldi 001b 00000001 | 001b000000010002 | load register 27 with value 0x1, constant 0x1 add
ldi 001c 00000008 | 001c000000080002 | load register 28 with value 0x8, constant 0x8 add
ldi 001d 0000000C | 001d0000000C0002 | load register 29 with value 0xC constant jump address
ldi 0020 00000000 | 0020000000000002 | load register 32 with value 0x0 constant jump address
copy 0010 0008 0000 ff | 001000080000ff56 | copy registers 8-15 to register 16-23
copy 0008 0000 0000 ff | 000800000000ff56 | copy registers 0-7 to register 8-15
add 0000 0008 0010 ff | 000000080010ff05 | store add of registers 8-15 and 16-23 to register 0-7
memw 0000 001a 0000 ff | 0000001a0000ff13 | store registers 0-7 to register 26 memory location 0-7
add 001a 001a 001c | 001a001a001c0005 | store add of register 26 and register 28 to register 26
add 0018 0018 001b | 00180018001b0005 | store add of register 24 and register 27 to register 24
sub 001e 0018 0019 | 001e001800190025 | store sub of register 24 and register 25 to register 30
cmpl 001f 001e | 001f001e00000014 | clear register 31, set if register 30 int less than 0
jmpc 001d 001f | 001d001f00000011 | jump to register 29 if register 31 is not zero
jmp 0020 | 0020000000000001 | unconditional jump to register 32
## A123456789ABCDEF | a123456789abcdef | custom data segment with any instruction or dataExample looping test assembly to c-code approximate:
while(true) { // infinite while loop
register<0> long fib1{8} = 0x1; // init fib1 with registers array 0-7 to long 1 vectorized 8x
register<8> long fib2{8} = 0x1; // init fib2 with registers array 8-15 to long 1 vectorized 8x
register<16> long fib3{8} = 0x0; // init fib3 with registers array 16-23 to long 0 vectorized 8x
register<24> long i = 0; // init loop i with register 24 long integer value 0
register<25> long imax = 32; // init loop imax with register 25 long integer value 32
register<26> long *mem = 0x18; // init mem with register 26 long integer pointer at 0x18
for (;i<imax;i++) { // for loop long integer i index value from 0 to 31
fib3{8} = fib2{8}; // copy array of old fib2 values to fib3 vectorized 8x
fib2{8} = fib1{8}; // copy array of old fib1 values to fib2 vectorized 8x
fib1{8} = fib2{8} + fib3{8}; // calculate array of new fib1 adding fib2 and fib3 vectorized 8x
mem{8} = fib1{8}; // store array of fib1 values to mem location index vectorized 8x
mem += 8; // move memory pointer 8 indexes forward
} // for loop close
} // infinite while loop closegate pipeline compute implemented as risc-v compute cores grid routing network. each core has their own 16-bit x 64bit = 512KB internal compute cache, but all middle level memory based caches are replaced with grid routing network for much higher bandwidth. each gate core has 2x 64-bit wide input and 1x 64-bit wide output.
gate pipeline compute architecture based on pre-computed nor-memory stored 8-bit values fpga architecture.
Logic gate pipeline compute.
Logic circuit/gate assembler.
