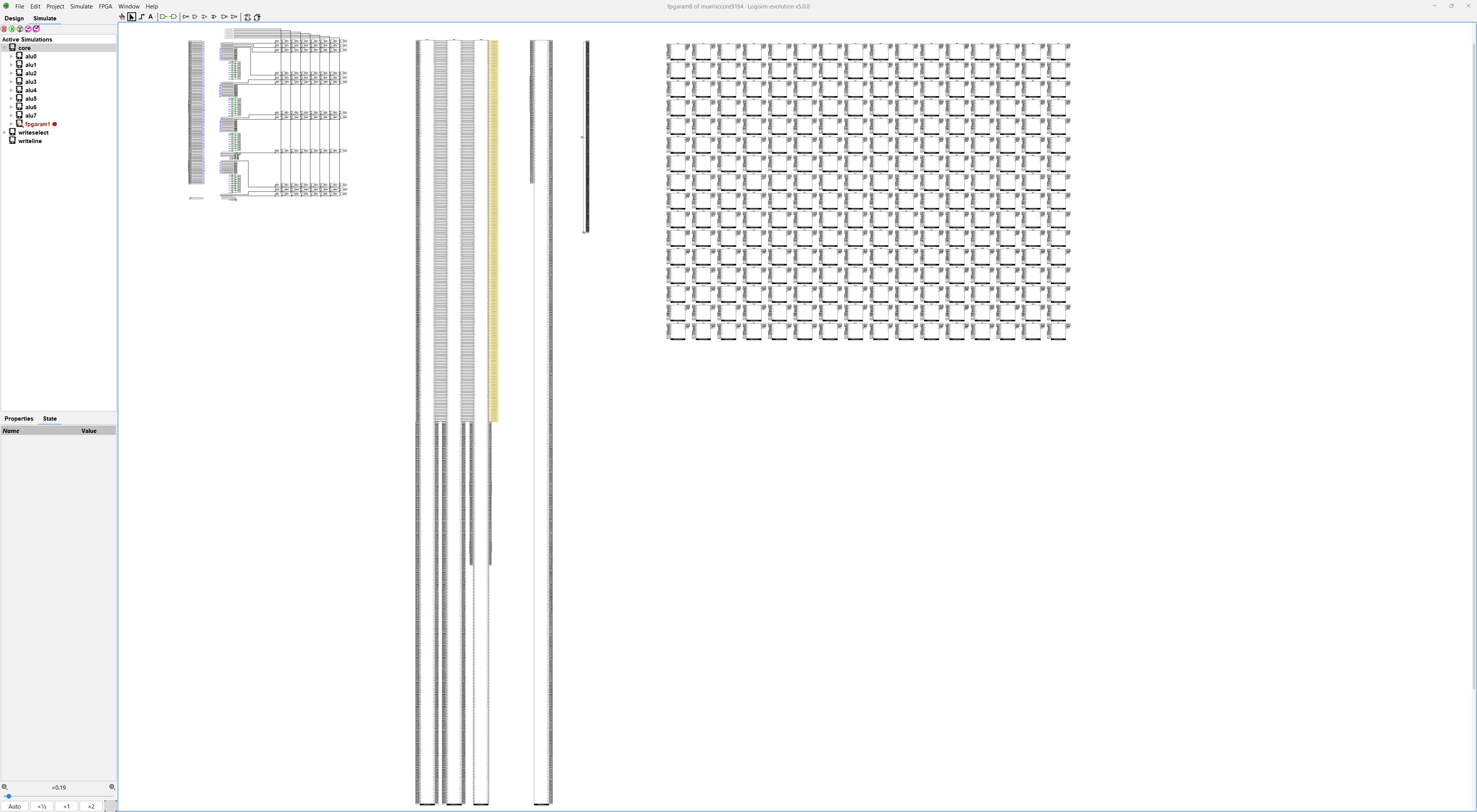

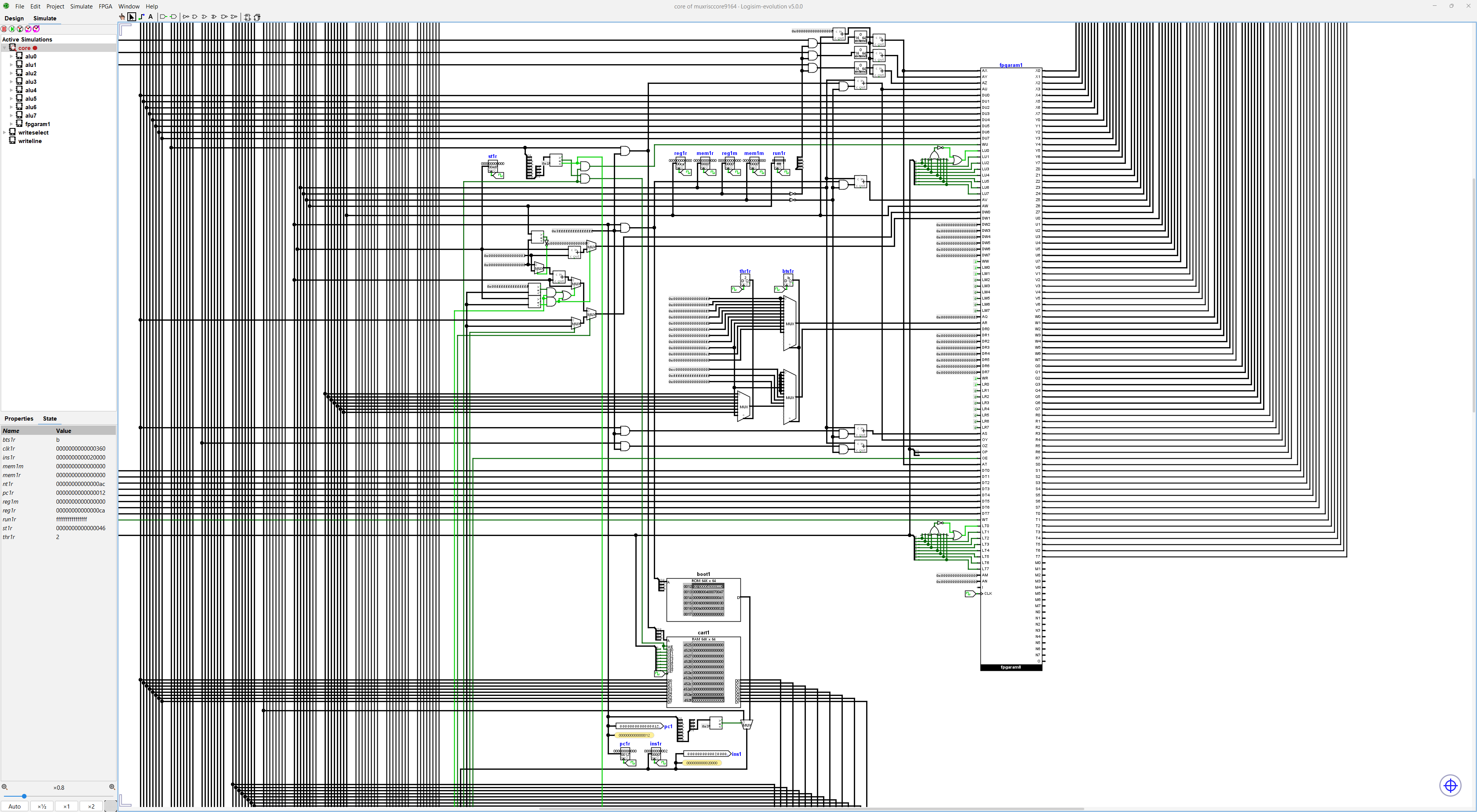

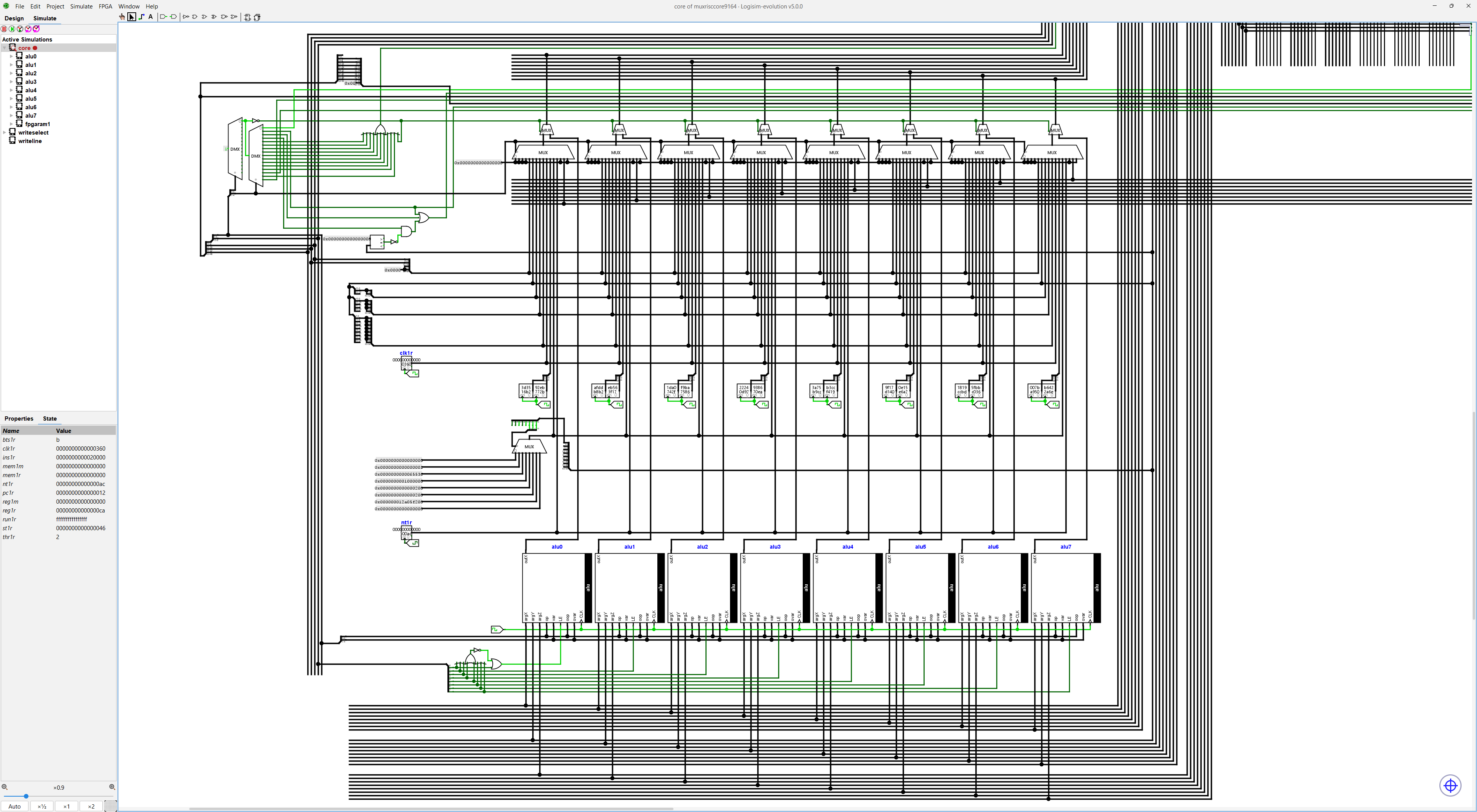

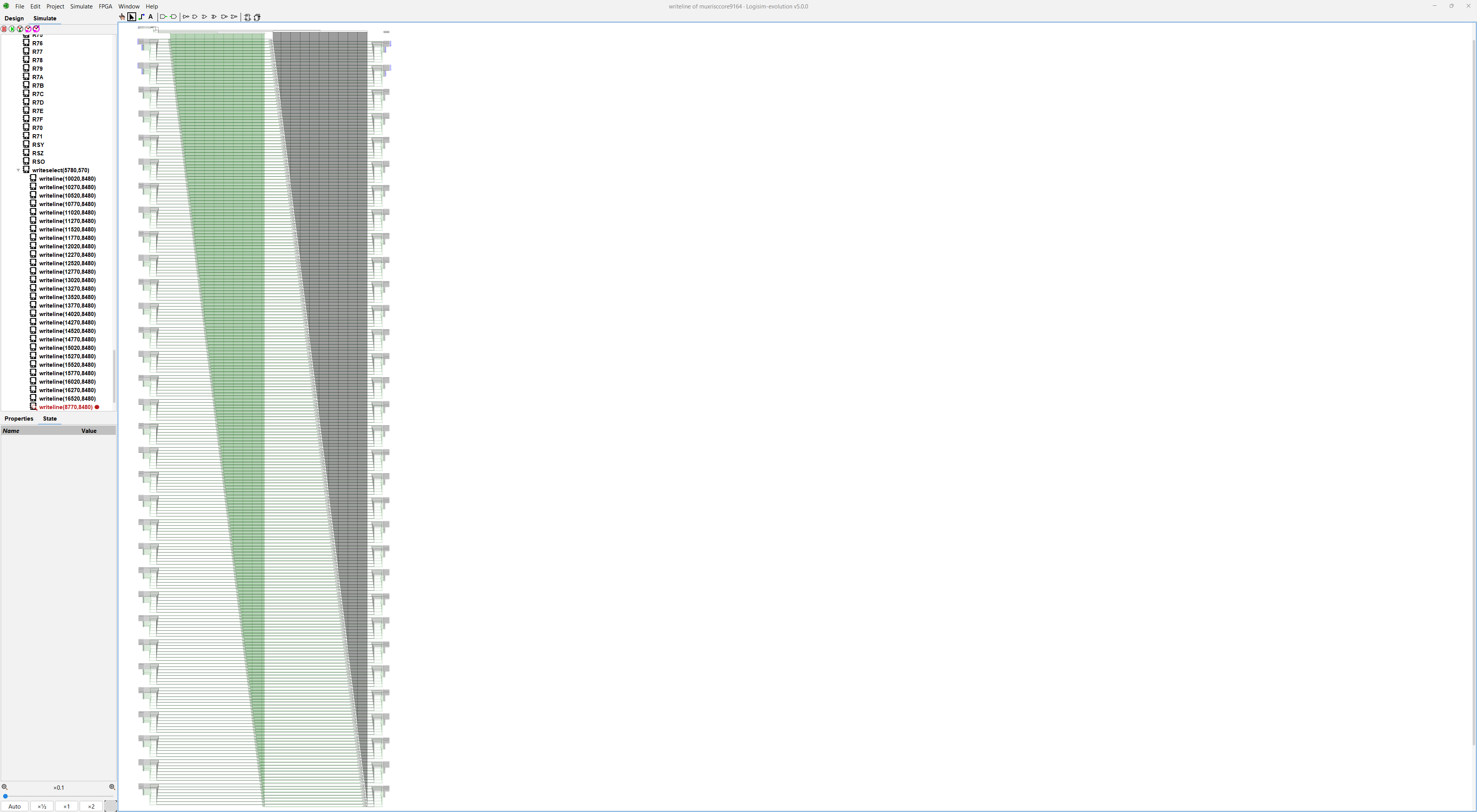

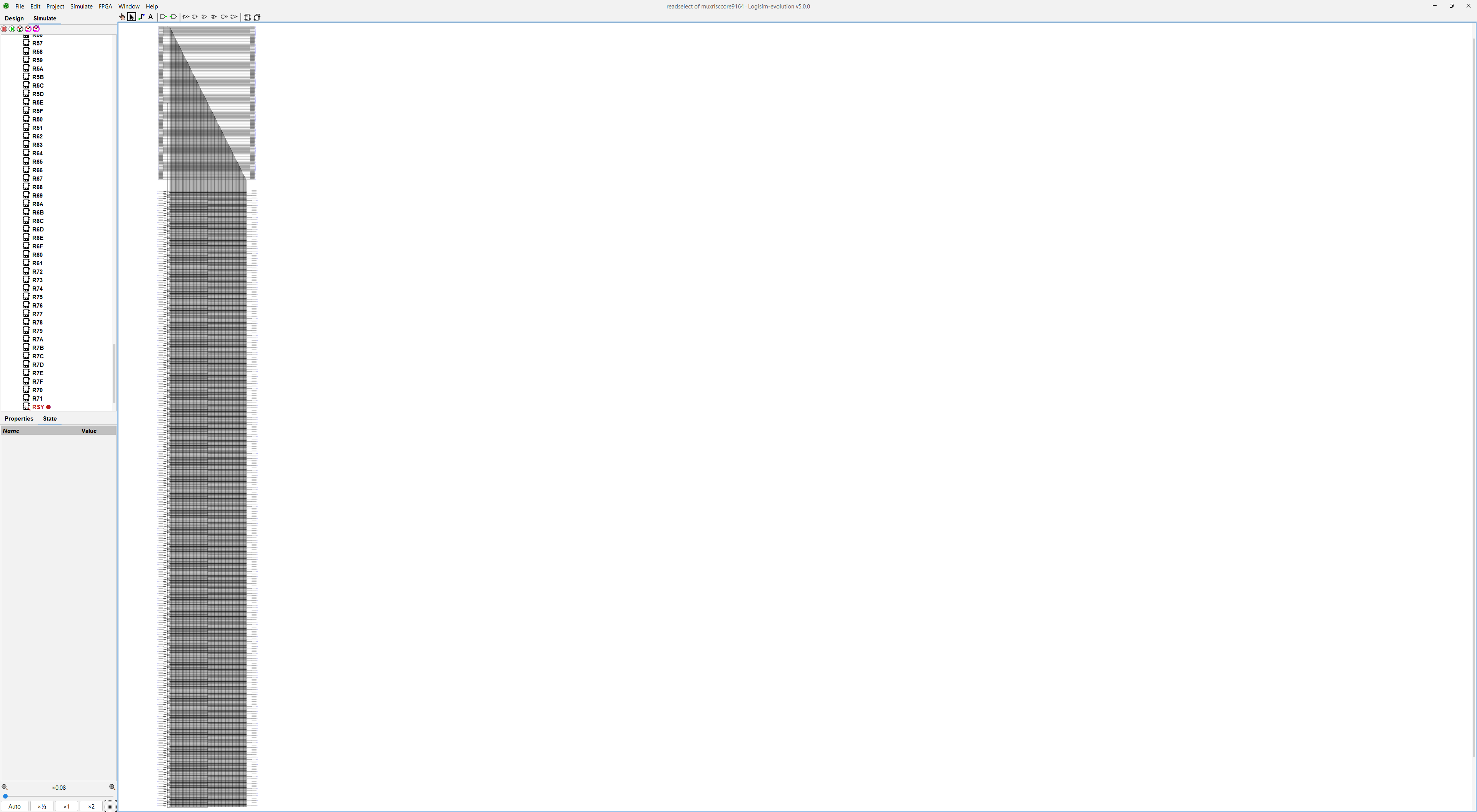

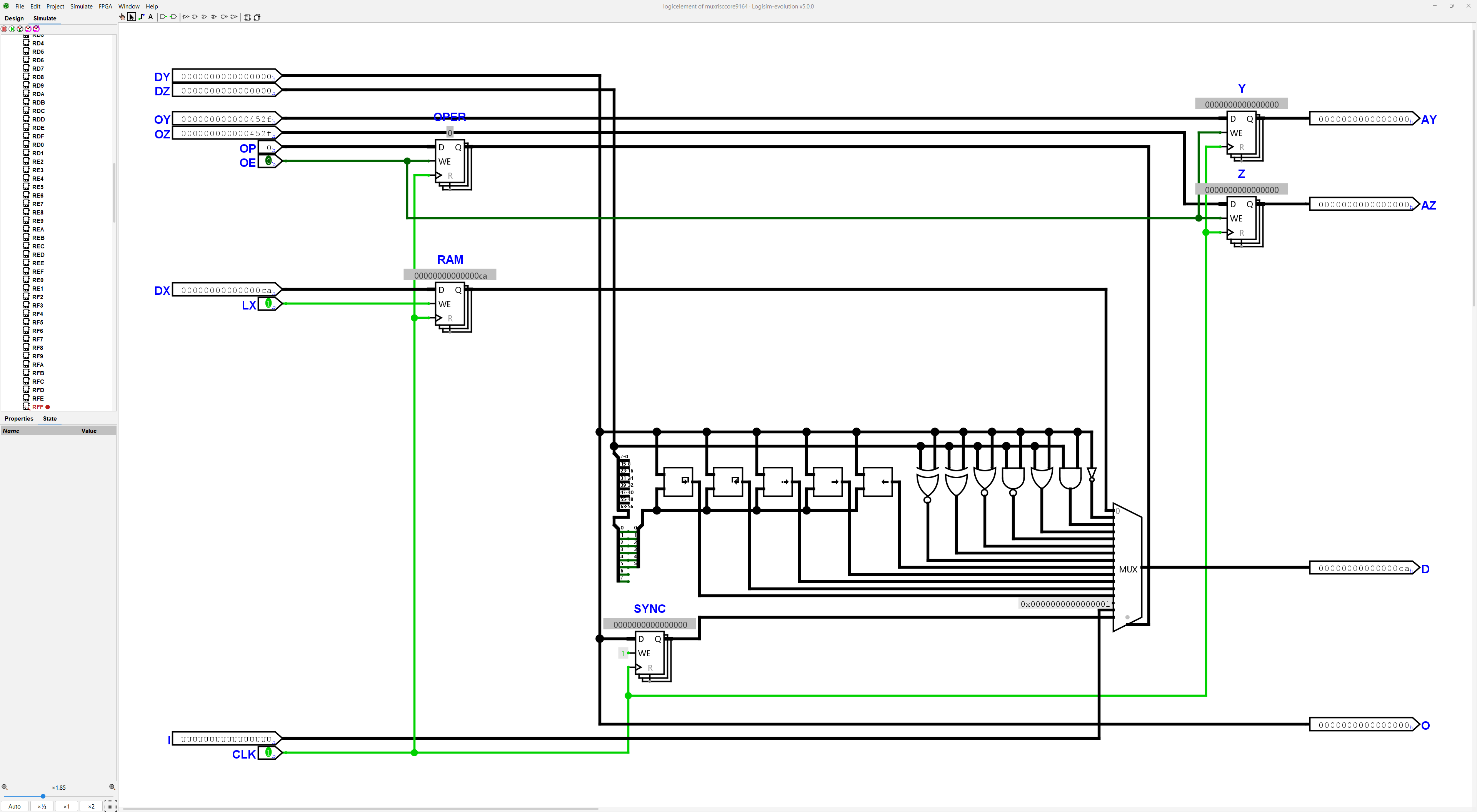

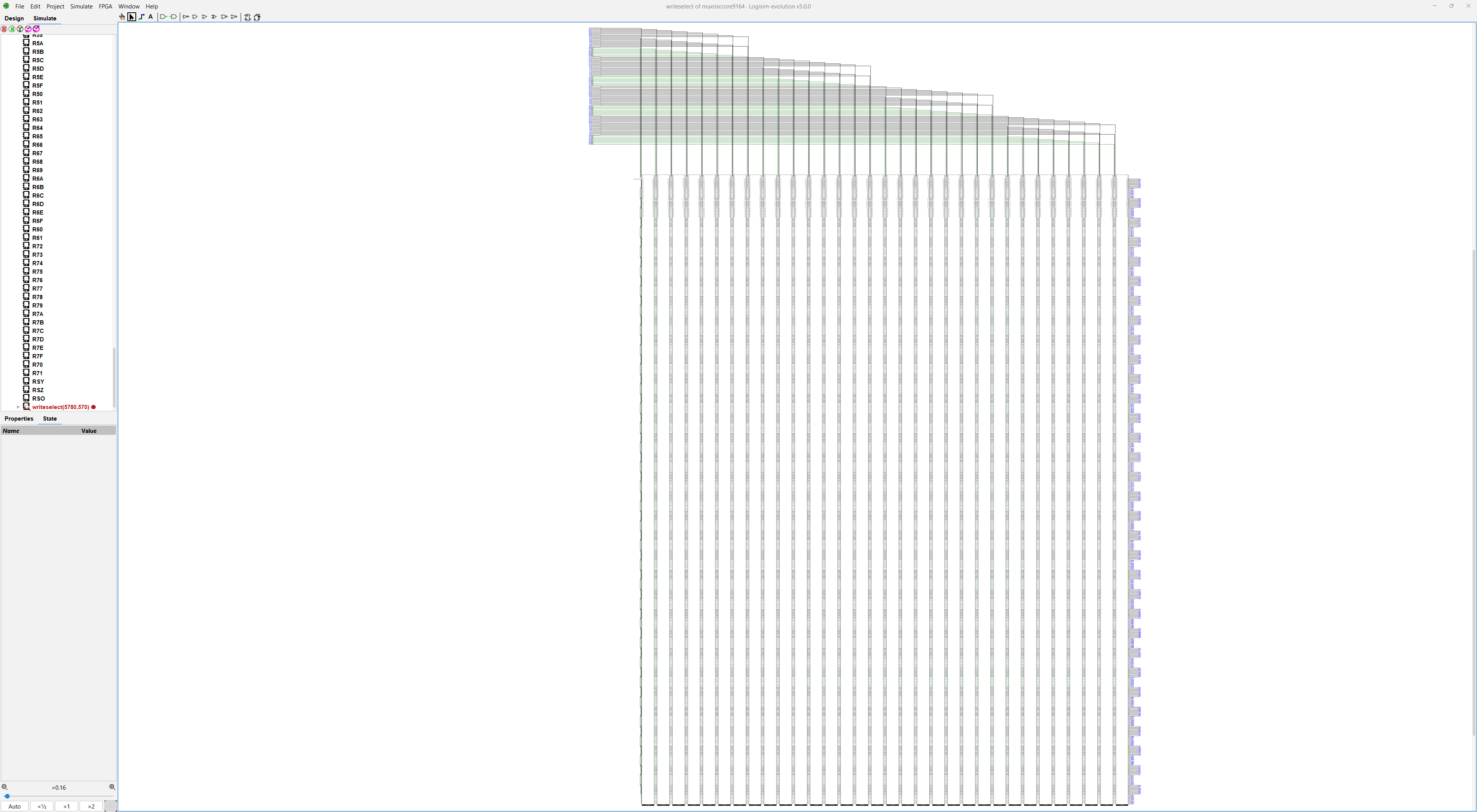

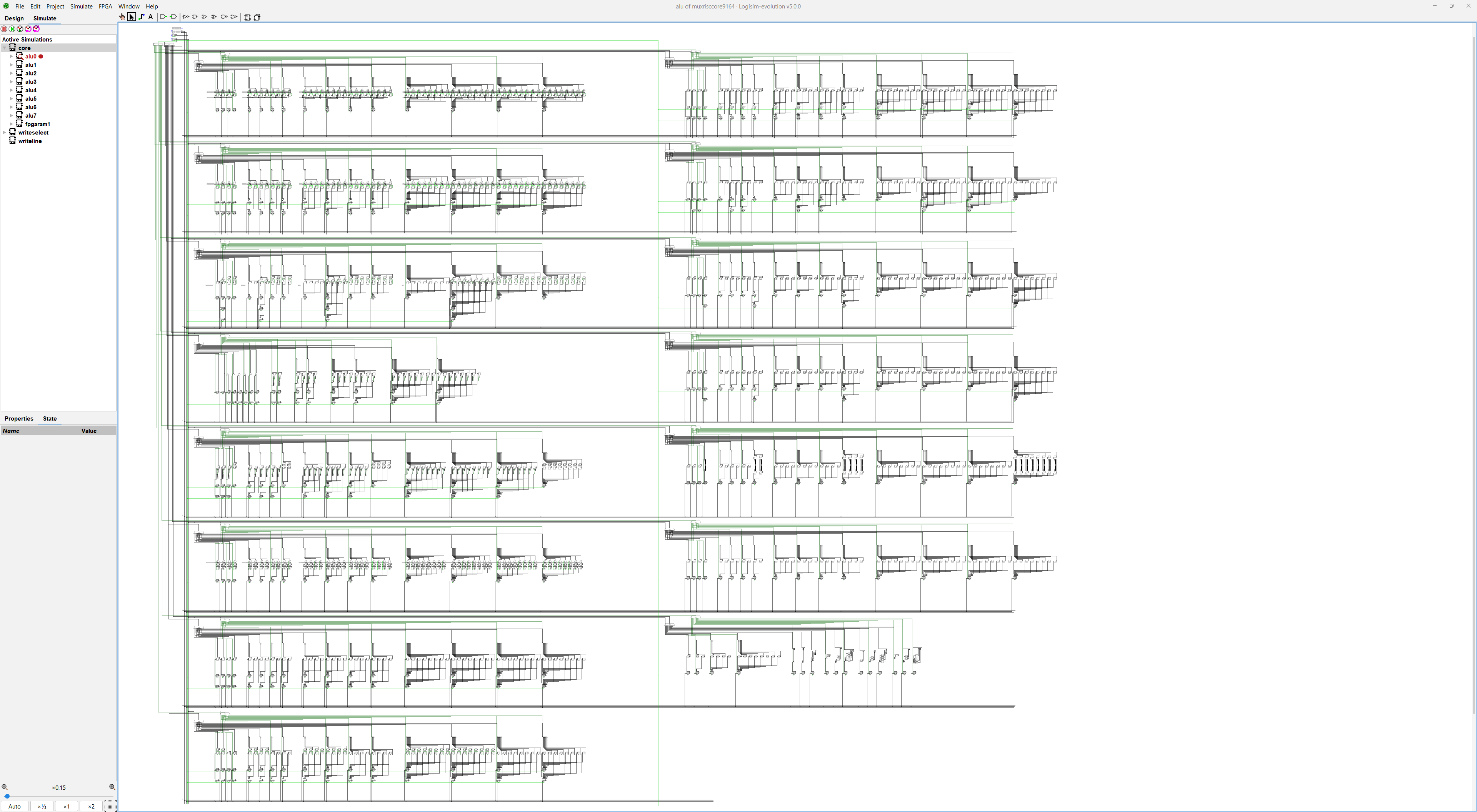

added risc chip circuit component that includes 16x risc core circuits with rail and 1-to-1 routing connections fully connected, 220 general purpose registers, 1 io line per core at register 224. renamed registry component rail outputN lines to outputNr even if only one of them is used per component for rail line output. added register 222 as global synchronized 64-bit clock that ticks at the system constant clock rate. at 5GHz the clock tick has 0.2ns accuracy and 100 years maximum date if used as counter from year 1970 looping back to zero. replaced instruction names with shorter names, removing int/bit/flp and using f as floating point indicator, like add and addf instructions. added unconditional jump mode small variation to jmp instruction at insV=1. register 223 holds freq global value as every core running frequency Hz value. register 221 holds core id, core count and core rail and 1-to-1 line register index for the core. assuming nop stops most of the current core running. updated main circuit chip input1 rom/ram storage for loading program image using built-in rom bootloader code in risc core circuit. removed all old code files, added source.asm/bin and loader.asm/bin program files for ram/rom testing on the core. added total chip core rom/ram to 2MB instead of 512KB ram only. implemented test boot loader rom code that copies first 256 data and instruction lines from simulated external rom to first core ram as shader program.
changed program counter and local rom/ram/disp/nvram addressing from 18-bit to 26-bit, each of the memory type blocks having their own 24-bit addressing block with unique page high 2-bit address. added separate disp and nvram writable blocks per core. disp ram block is meant to directly display on native on-chip distributed led display at 64-bit hdr color 16-bits color components. nvram ram block is meant to be larger separate non-volatile bootable distributed nand for loading default boot programs if a boot rom is not connected. updated loader.asm and source.asm to work on the new local core memory addressing. changed chip core display ram to touch display ram, using the last 16-bit of pixel color ram, alpha color, as touch pressure input value. added internal 256×256 micro led panel output to the touch-disp ram segment using the first 512KB 64-bit colors in 24-bit RGB color mode. added visible names to custom risc core 4x ram blocks rom/ram/disp/nand.
RISC core-gate instruction set architecture (64-bit variation of RISC-V):
Each core contains 2x 32k core-rail and 1-to-1 routing lines, 512 io-lines, and 1024 registers.
Each core contains 26-bit addressed 1MB rom, 1MB ram, 1MB touch-display ram, and 128MB nand nvram.
Every instruction uses/operates on full 64-bit register values always.
Instruction high bits can contain specific simple variations of instructions.
Each 64-bit instruction is formed from 16-bit [regX regY regZ insT] parameters.
insT parameter is formed from 8-4-4-bit [bitI insV insO] parameters.
Estimated logic transistors per core is 200k making 32k cores about 6.4 billion.
Estimated ram transistors per core is 4million 512KB and 128billion total 16GB.
Estimated compute 64-bit teraops at 5GHz per core is 5gops and 160tops total.
Opcode | Cycles | Instruction | Name | Description
----------------------------------------------------------------------------------------------------
any | any | ## | Any Raw Data | direct data line 64-bit value
0 | 1 | nopYZ | No Operation | no operation sleep constant regYZ cycles
[] empty line or white space line
// comment line
1 | 1 | jmpXY | Jump Destination | jump to regX if regYb[bitI] is set
jmpcXY insV=0 jump to regX if regYb[bitI] is set
jmpuXY insV=1 unconditional jump to regX
2 | 1 | ldiXYZ | Load 32-bit Uint | load regX with constant regYZ
3 | 2 | memXY | Memory Double | store/load[insV] regX at memory[regY]
memrXY insV=0 load
memwXY insV=1 store
4 | 1 | cmpXY | Compare to Zero | clear regXb[bitI], set to 1 if regY comp[insV]
cmpeXY insV=0 integer equal to
cmplXY insV=1 integer less than
cmpefXY insV=2 float equal to
cmplfXY insV=3 float less than
5 | 1 | intXYZ | ALU Int Operation | store integer op[insV] regY regZ to regX
addXYZ insV=0 integer add
addoXYZ insV=1 integer add overflow bit regXb[bitI]
subXYZ insV=2 integer subtract
subbXYZ insV=3 integer subtract borrow bit regXb[bitI]
mulXYZ insV=4 integer multiply
muloXYZ insV=5 integer multiply overflow
divXYZ insV=6 integer divide
divrXYZ insV=7 integer divide remainder
negXYZ insV=8 integer negate
6 | 1 | bitXYZ | ALU Bit Operation | store bitwise op[insV] regY regZ to regX
shlXYZ insV=0 bitwise shift left regZ bits
shrXYZ insV=1 bitwise shift right regZ bits
sharXYZ insV=2 bitwise shift arithmetic right regZ bits
rotlXYZ insV=3 bitwise rotate left regZ bits
rotrXYZ insV=4 bitwise rotate right regZ bits
copyXYZ insV=5 bitwise copy
notXYZ insV=6 bitwise not
orXYZ insV=7 bitwise or
andXYZ insV=8 bitwise and
nandXYZ insV=9 bitwise nand
norXYZ insV=A bitwise nor
xorXYZ insV=B bitwise xor
xnorXYZ insV=C bitwise xnor
7 | 1 | flpXYZ | ALU Flp Operation | store float op[insV] regY regZ to regX
addfXYZ insV=0 float add
subfXYZ insV=1 float subtract
mulfXYZ insV=2 float multiply
divfXYZ insV=3 float divide
negfXYZ insV=4 float negate
itfXYZ insV=5 integer to float
ftinXYZ insV=6 float to integer nearest
ftidXYZ insV=7 float to integer round down
ftiuXYZ insV=8 float to integer round up
ftitXYZ insV=9 float to integer truncateExample boot loader assembly code source and binary:
source listing | binary | explanation
----------------------------------------------------------------------------------------------------
[ init variables ]
ldi 0000 00000000 | 0000000000000002 | rom read index 0x0000000
ldi 0001 01000000 | 0001010000000002 | ram write index 0x1000000
ldi 0002 00000001 | 0002000000010002 | constant 0x1
ldi 0003 01000000 | 0003010000000002 | jump address 0x1000000
ldi 0004 00000100 | 0004000001000002 | rom to ram copy size
ldi 0005 0000001A | 00050000001A0002 | zero branch jump address
ldi 0006 00000011 | 0006000000110002 | non-zero branch jump address
ldi 0007 0000FFFF | 00070000FFFF0002 | 16-bit core num and filter
ldi 0008 0000FFFF | 00080000FFFF0002 | 16-bit core rail and filter
ldi 0009 00000020 | 0009000000200002 | 16-bit core rail and filter shift bits
[ core id zero check ]
copy 0010 00dc | 001000DC00000056 | get current core id
and 0011 0010 0007 | 0011001000070086 | get core id core index
shl 0008 0008 0009 | 0008000800090006 | shift rail mask left 32 bits
and 0012 0010 0008 | 0012001000080086 | get core id rail index
shr 0012 0012 0009 | 0012001200090016 | shift core id rail index right 32 bits
cmpe 0013 0011 | 0013001100000004 | set 1 if core id is zero
jmpc 0005 0013 | 0005001300000001 | jump to core zero code
[ core id non-zero branch ]
nop 00000002 | 0000000000020000 | exact sync wait 3 cycles with zero branch
copy 0030 00E0 | 003000E000000056 | get external rom data from core rail zero
memw 0030 0001 | 0030000100000013 | store external rom data to ram
add 0000 0000 0002 | 0000000000020005 | rom index++
add 0001 0001 0002 | 0001000100020005 | ram index++
sub 0031 0000 0004 | 0031000000040025 | rom index minus copy size
cmpl 0032 0031 | 0032003100000014 | set 1 if rom index < copy size
jmpc 0006 0032 | 0006003200000001 | if rom index < copy size loop back
jmpu 0003 | 0003000000000011 | jump to ram start if done
[ core id zero branch ]
copy 00df 0000 | 00DF000000000056 | put rom index to output1
copy 0030 00df | 003000DF00000056 | get rom data from input1
copy 00E0 0030 | 00E0003000000056 | store external rom data to core rail zero
memw 0030 0001 | 0030000100000013 | store external rom data to ram
nop 0000 | 0000000000000000 | exact sync wait 1 cycles with zero branch
add 0000 0000 0002 | 0000000000020005 | rom index++
add 0001 0001 0002 | 0001000100020005 | ram index++
sub 0031 0000 0004 | 0031000000040025 | rom index minus copy size
cmpl 0032 0031 | 0032003100000014 | set 1 if rom index < copy size
jmpc 0005 0032 | 0005003200000001 | if rom index < copy size loop back
jmpu 0003 | 0003000000000011 | jump to ram start if doneExample looping test assembly code source and binary:
source listing | binary | explanation
----------------------------------------------------------------------------------------------------
[] | 0000000000000000 | empty line
// empty line | 0000000000000000 | comment line
nop 00000200 | 0000000002000000 | no operation sleep 512+1 cycles
ldi 0000 00000001 | 0000000000010002 | load register 0 with value 0x1, current fibonacci number
ldi 0001 00000001 | 0001000000010002 | load register 1 with value 0x1, previous fibonacci number
ldi 0002 00000000 | 0002000000000002 | load register 2 with value 0x0, previous+ fibonacci number
ldi 0003 00000000 | 0003000000000002 | load register 3 with value 0x0, for loop index from 0
ldi 0004 00000020 | 0004000000200002 | load register 4 with value 0x20, for loop less than 32
ldi 0005 01000018 | 0005010000180002 | load register 5 with value 0x1000018, ram store start index
ldi 0006 00000001 | 0006000000010002 | load register 6 with value 0x1, constant 0x1 add and jump
ldi 0007 0100000C | 00070100000C0002 | load register 7 with value 0x100000C constant jump address
ldi 000b 01000000 | 000b010000000002 | load register 11 with value 0x1000000 constant jump address
copy 0002 0001 | 0002000100000056 | copy register 1 to register 2
copy 0001 0000 | 0001000000000056 | copy register 0 to register 1
add 0000 0001 0002 | 0000000100020005 | store addition of register 1 and register 2 to register 0
add 000a 0005 0003 | 000a000500030005 | store addition of register 5 and register 3 to register 10
memw 0000 000a | 0000000a00000013 | store register 0 to register 10 memory location
add 0003 0003 0006 | 0003000300060005 | store addition of register 3 and register 6 to register 3
sub 0008 0003 0004 | 0008000300040025 | store subtract of register 3 and register 4 to register 8
cmpl 0009 0008 | 0009000800000014 | clear register 9 bit 0, set if register 8 int less than 0
jmpc 0007 0009 | 0007000900000001 | jump to register 7 if register 9 bit 0 is set
jmpu 000b | 000b000000000011 | unconditional jump to register 11
## A123456789ABCDEF | a123456789abcdef | custom data segment with any instruction or dataExample looping test assembly to c-code approximate:
while(true) { // infinite while loop
long fib1 = 0x1; // init fib1 with 64-bit long integer value 1
long fib2 = 0x1; // init fib2 with 64-bit long integer value 1
long fib3 = 0x0; // init fib3 with 64-bit long integer value 0
long *mem = 0x18; // init mem as 64-bit long integer pointer at address 0x18
for (long i=0;i<32;i++) { // for loop 64-bit long integer i index value from 0 to 31
fib3 = fib2; // copy old fib2 value to fib3
fib2 = fib1; // copy old fib1 value to fib2
fib1 = fib2 + fib3; // calculate new fib1 value by adding fib2 and fib3
mem[i] = fib1; // store fib1 value to mem location +i index
} // for loop close
} // infinite while loop closegate pipeline compute implemented as risc-v compute cores grid routing network. each core has their own 16-bit x 64bit = 512KB internal compute cache, but all middle level memory based caches are replaced with grid routing network for much higher bandwidth. each gate core has 2x 64-bit wide input and 1x 64-bit wide output.
gate pipeline compute architecture based on pre-computed nor-memory stored 8-bit values fpga architecture.
Logic gate pipeline compute.
Logic circuit/gate assembler.
